Drilldowns enable powerful point and click actions from one widget into another widget. Data from the parent widget can be used as keys into the drilldown widget to filter the data specifically for the point selected.
Drilldowns allow your users to visually navigate and analyze data in powerful ways. They can be set into another widget, another dashboard or the same dashboard, and can be any levels deep with support for drilldown modes with mix and match.
Drilldowns can be configured using the 'Drilldowns' menu option on each widget in the dashboard.
Drilldown Settings:
-
'Drilldown Type' determines that drilldown will be configured to drill into a widget, dashboard, or connected widget.
- 'Drill Into' determines which widget/dashboard will appear when the user clicks.

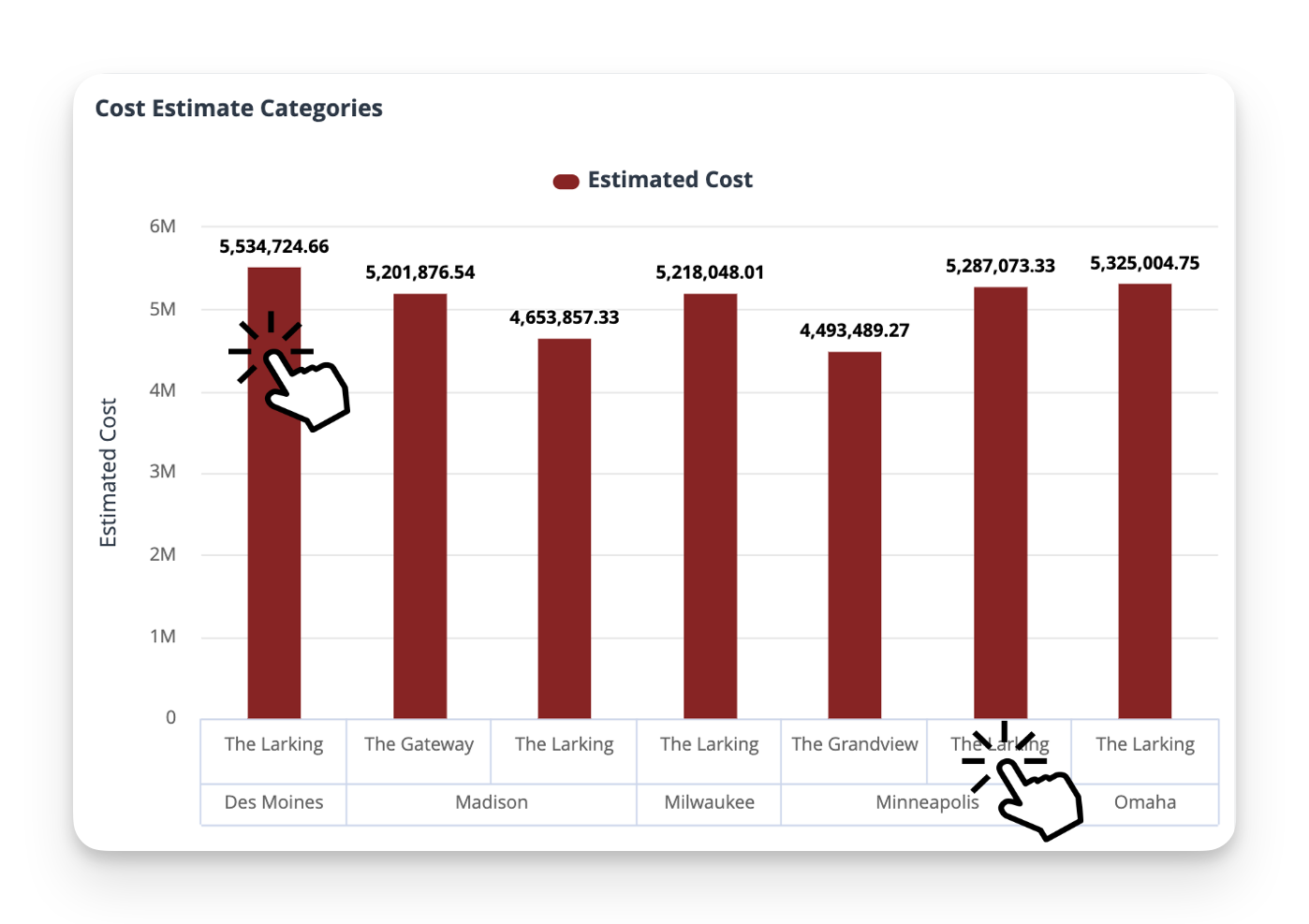

- 'When clicked' determines which parts of the widget will be sensitive to a click. When a user presses on this section or 'Any' for every part of the widget, the drilldown will occur.
-
'Optional Drilldown Filters' determines what filters will appear on the new widget/dashboard. The settings will be passed along into the next drilldown with that filter enabled.
Choosing Your Drilldown Type
When configuring drilldowns, you have three options to determine where the drilldown action will take users:
Drilldown Type: Widget
Action: Replaces the current widget with another widget in the same dashboard. You can set up the drilldown to filter the second widget for the data that was clicked in the first widget by setting "Optional Drilldown Filters". Click here for more info.

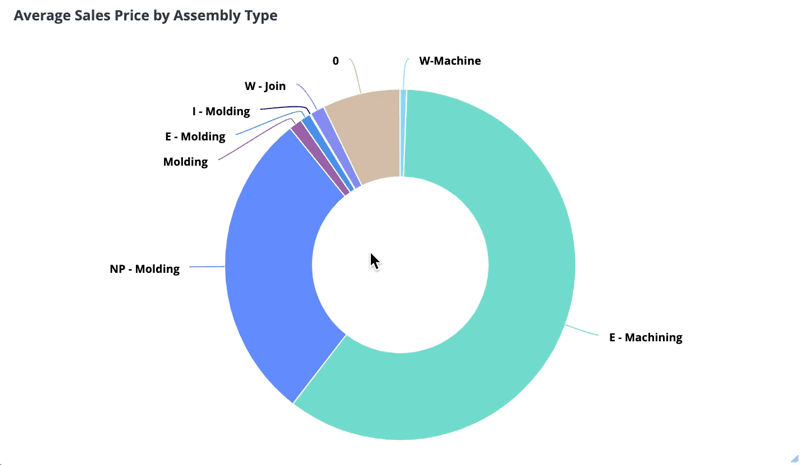

Example: Clicking a section of a pie chart updates the widget to display a detailed table for the selected category.

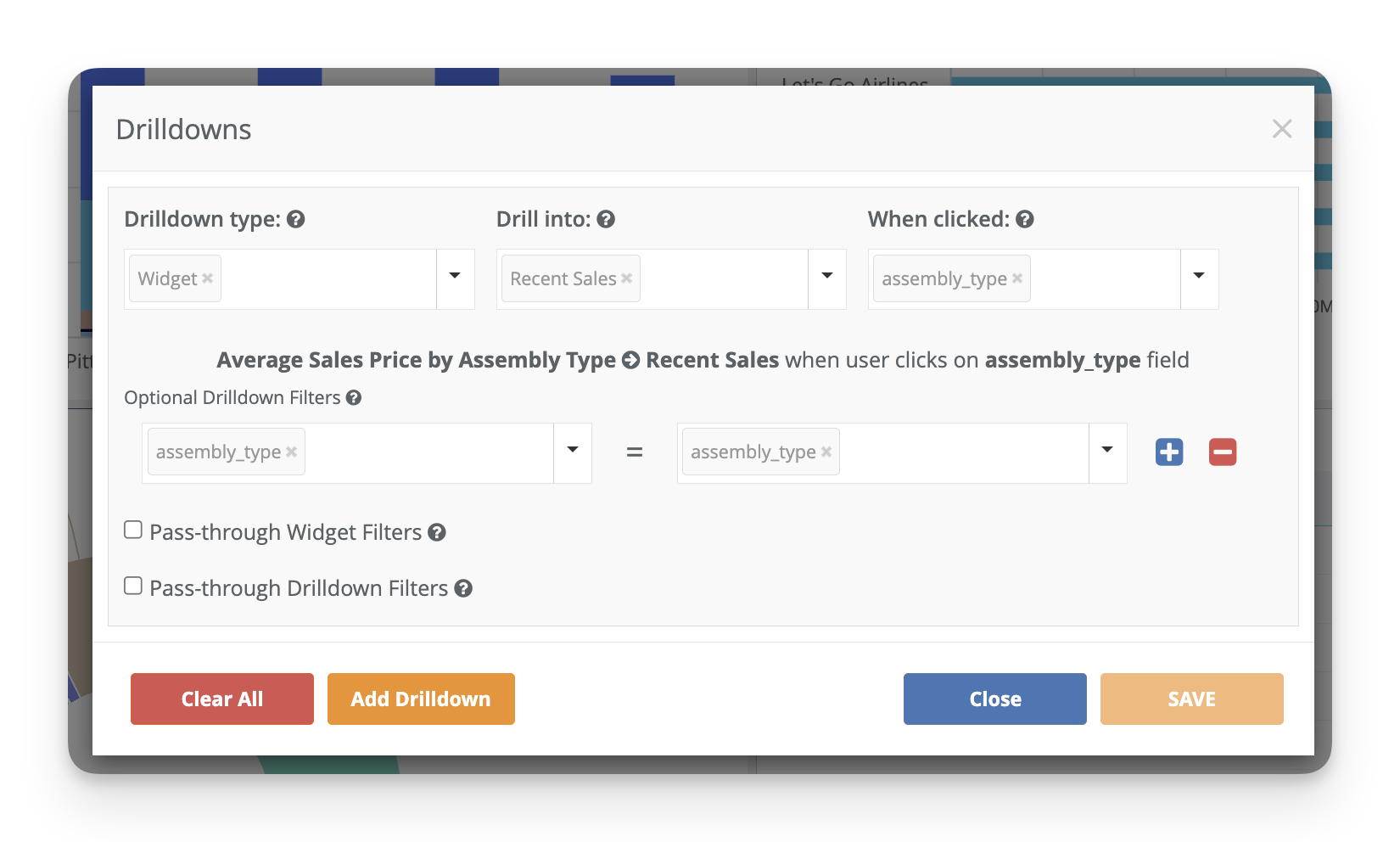

Setup:
Drilldown Type: Connected Widgets
Action: Filters all widgets on the current dashboard based on the clicked data point. Click here for more info.

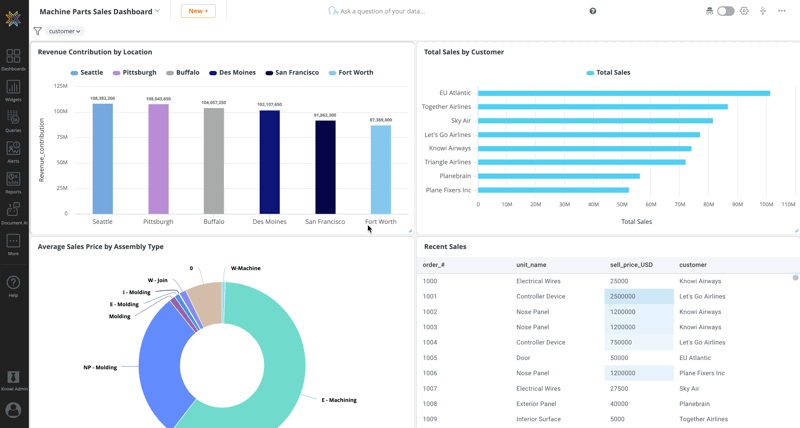

Example: Clicking a bar in a sales locations chart updates all other widgets on the dashboard to show data for that location.

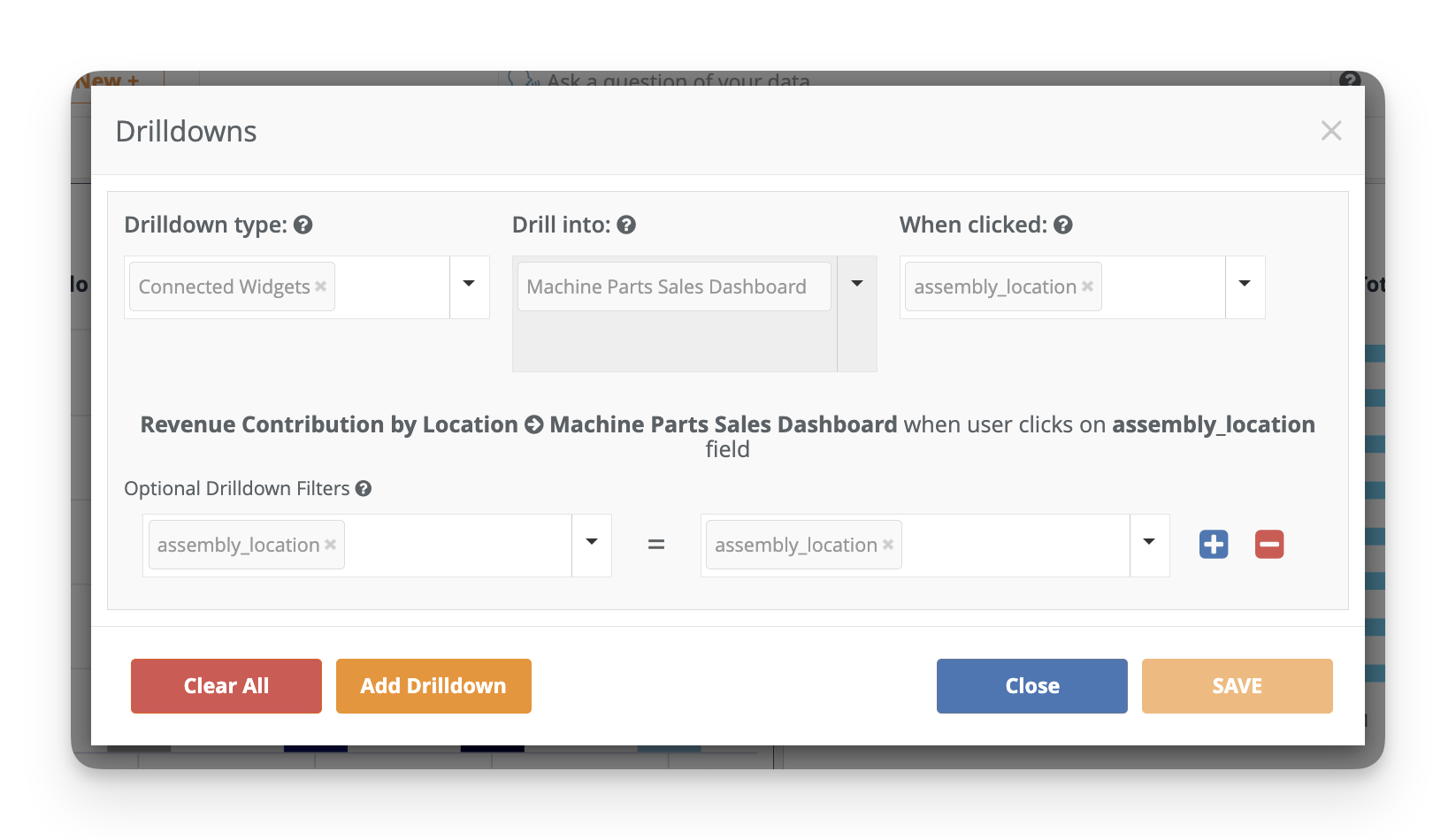

Setup:

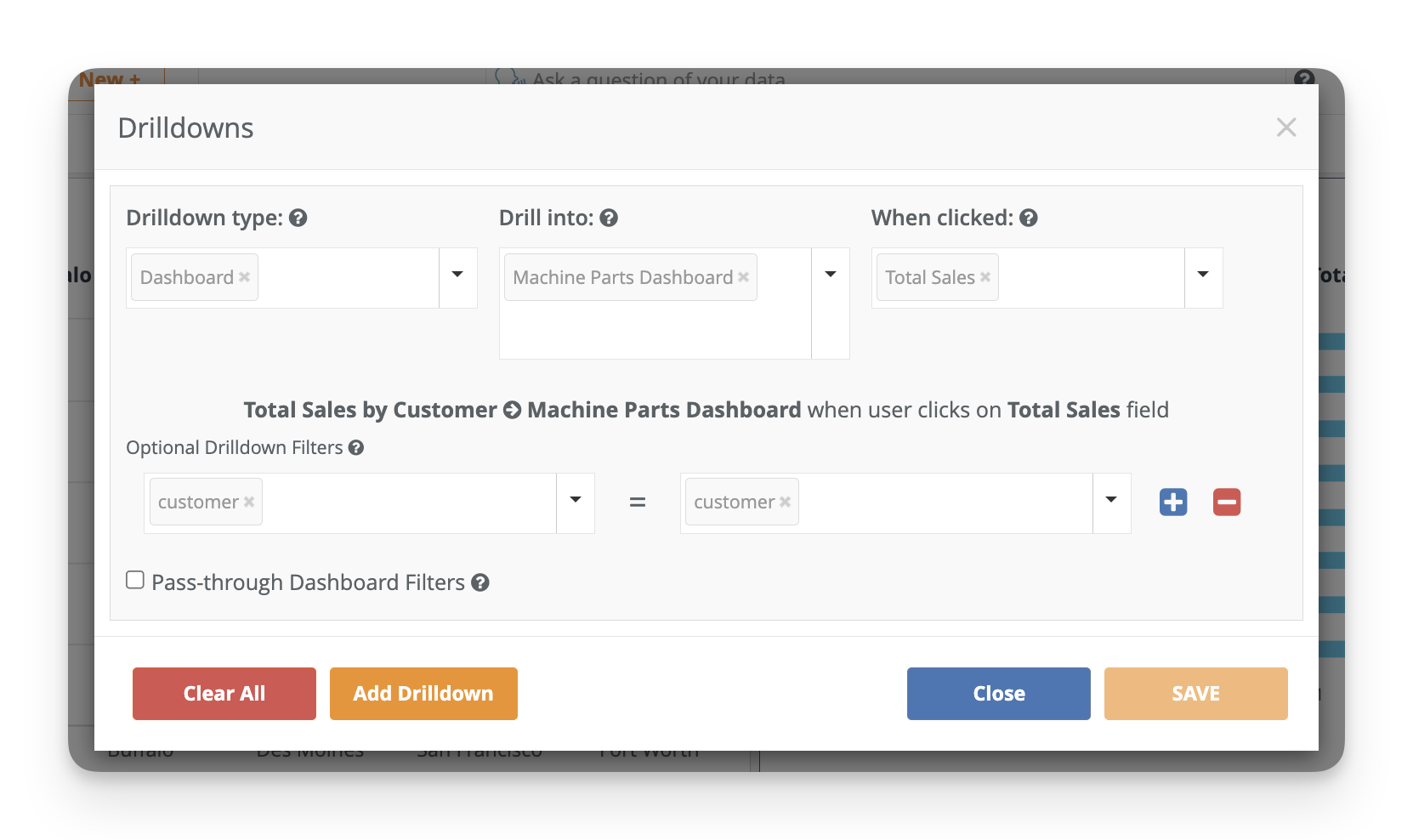

Drilldown Type: Dashboard
Action: Replaces the current dashboard with a new one while retaining selected filters. It can also reload the same dashboard. Click here for more info.

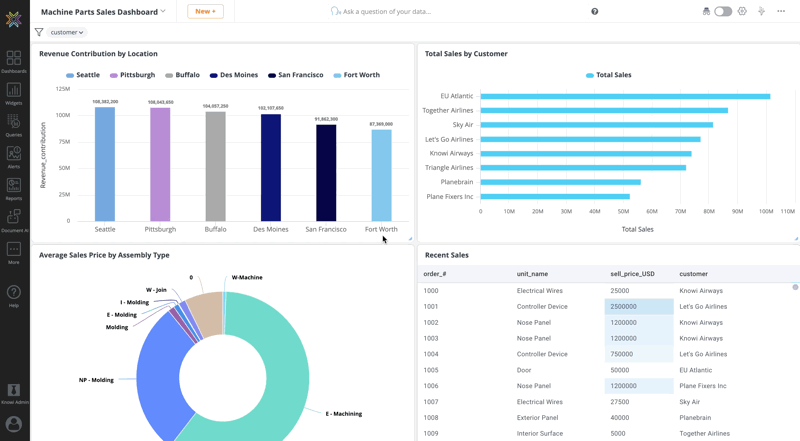

Example: Clicking a data point on a summary dashboard navigates to a detailed dashboard with more granular insights.
Setup:
Setting up a Drilldown

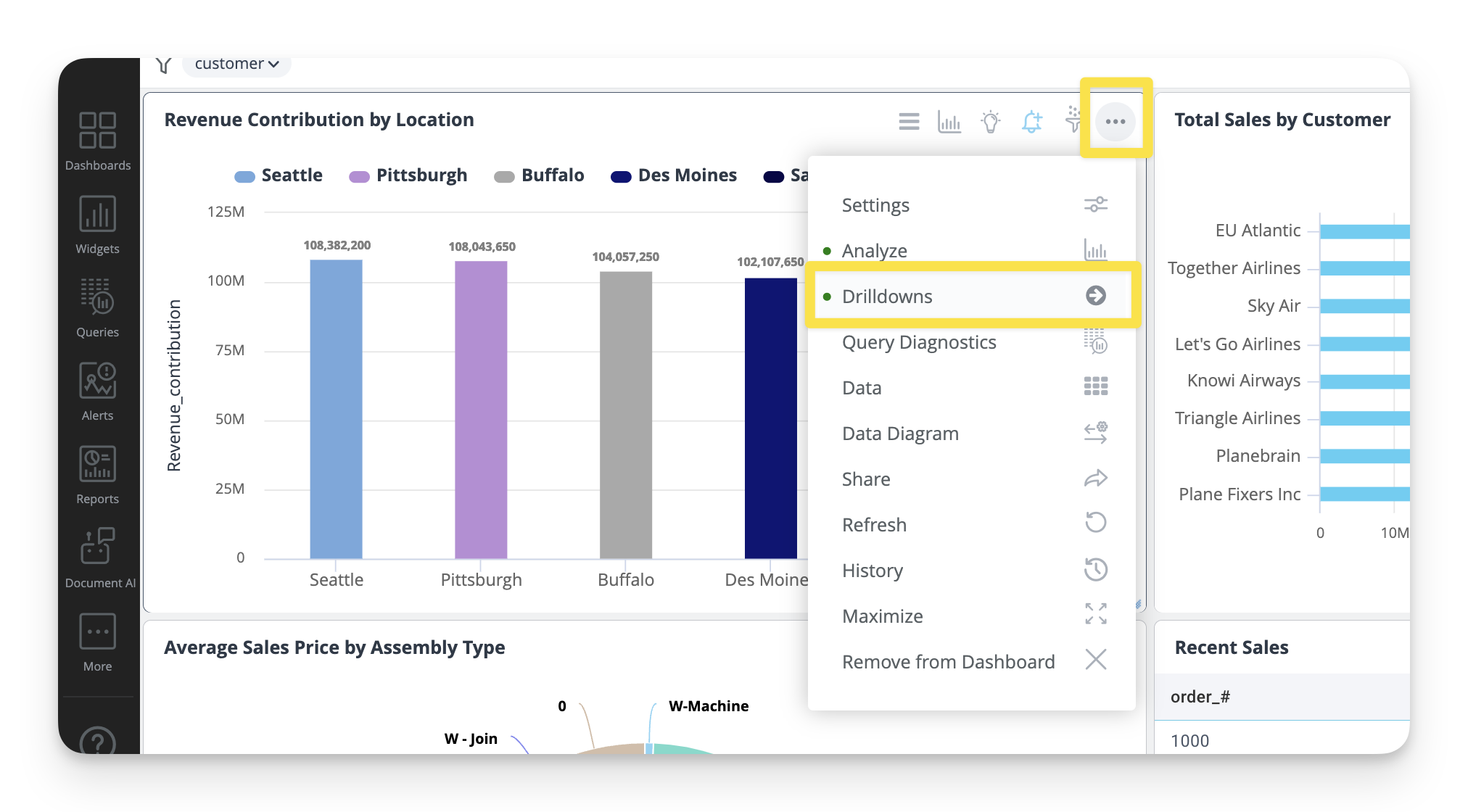

To set up a drilldown, click the three dots in the top-right corner of any widget and select Drilldowns. This opens a modal where you can configure the drilldown and choose its type.

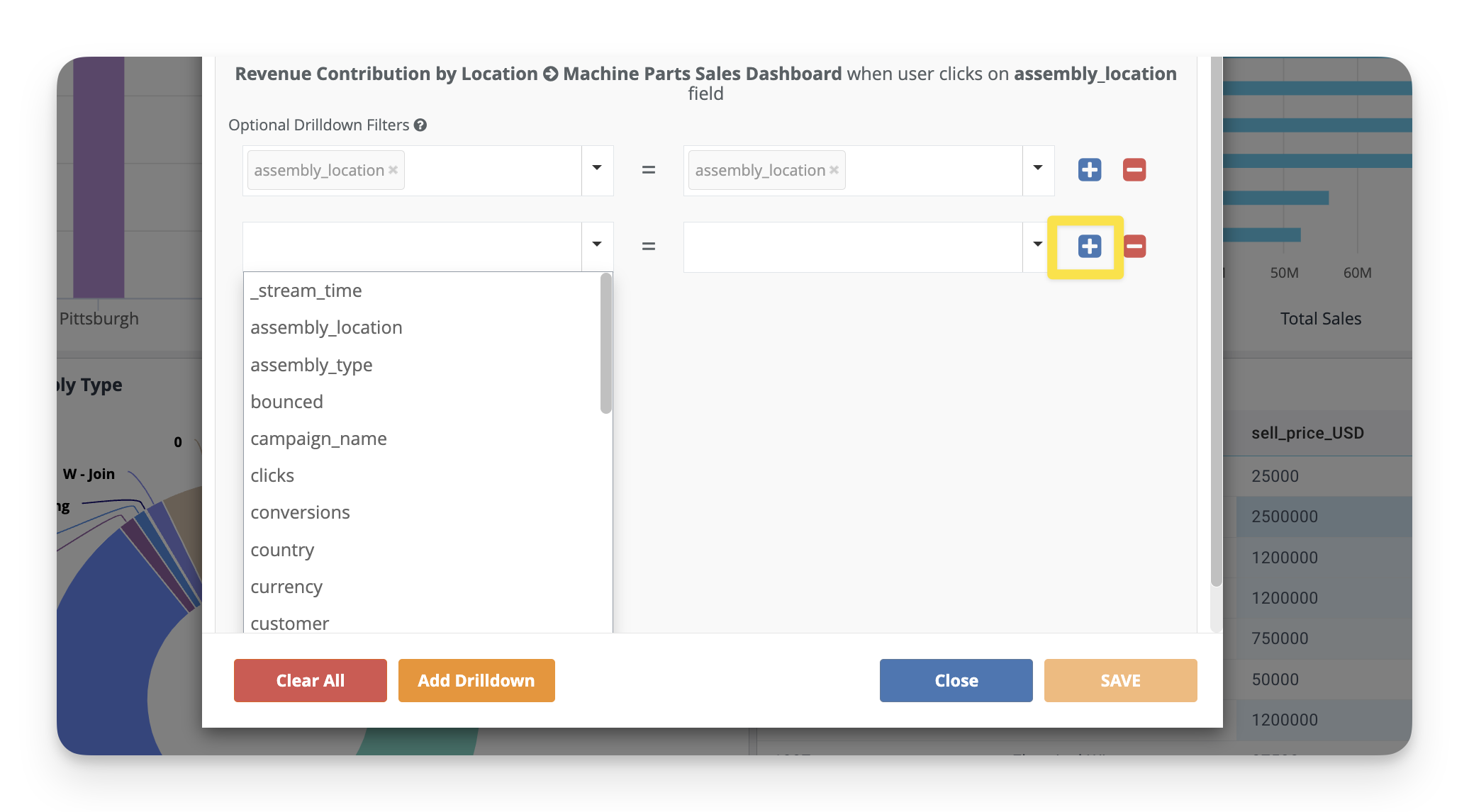

You can add multiple Drilldown filter conditions to a widget by clicking the blue plus sign. By doing this, you can apply filters on multiple columns to the drilldown.

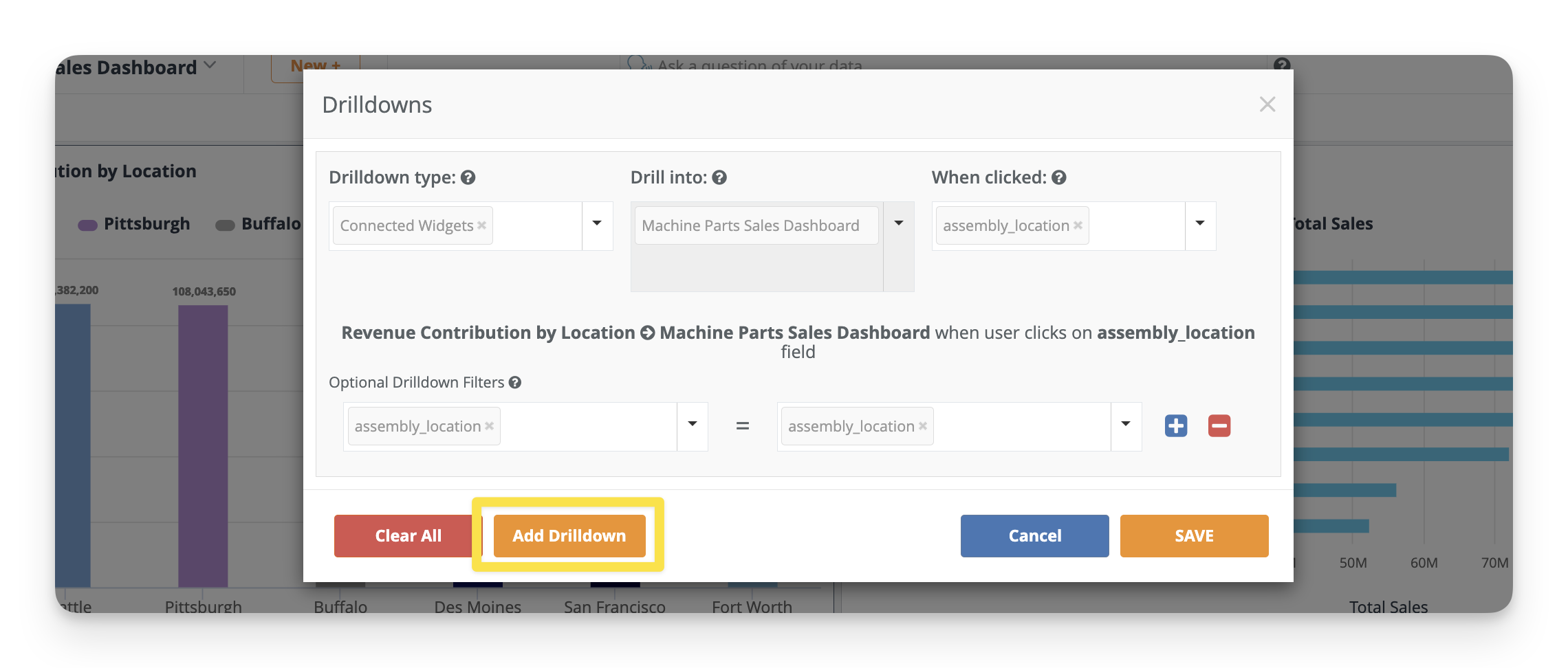

You can also add multiple Drilldowns to a widget by clicking the orange Add Drilldown button. By doing this, you can set up various drilldowns to be triggered when different parts of the widget are clicked.

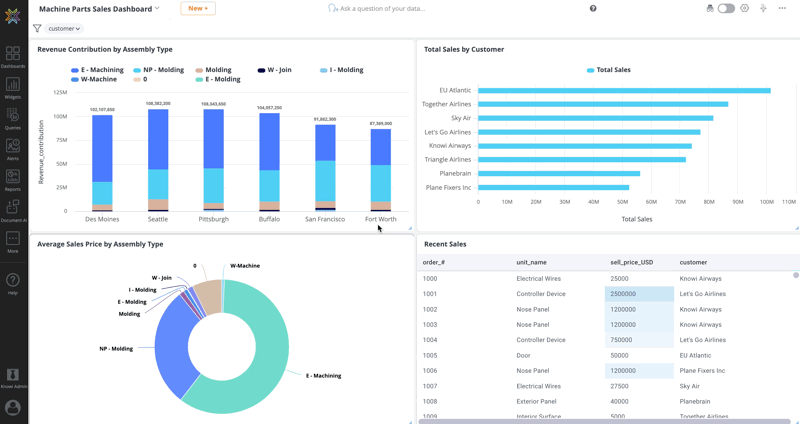

Full Walkthrough setting up a widget drilldown:
