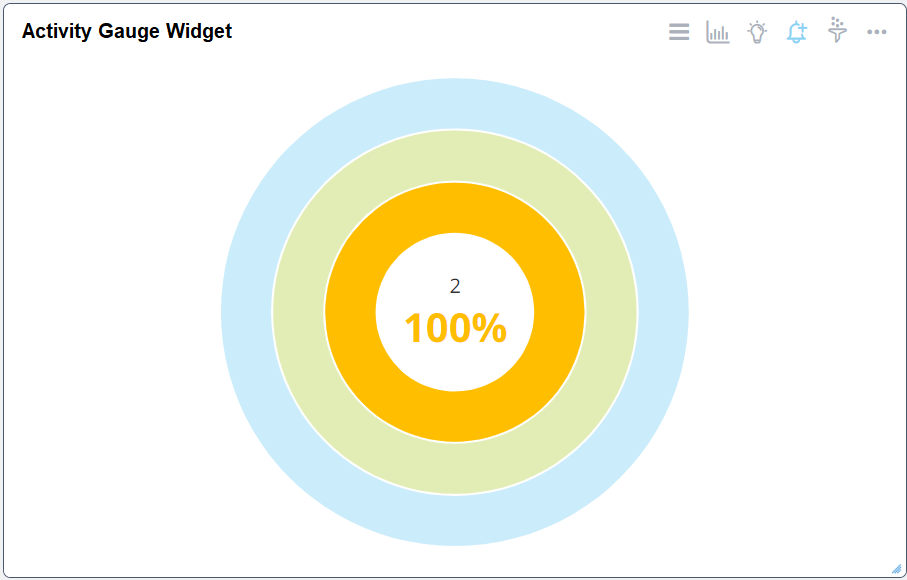

An activity gauge is a circular chart that illustrates the status of activities through segments. Each segment's length and color reflect data. It shows progress, distribution, or performance with up to five segments.
It is a visual or graphical representation used to measure or display the level of activity or engagement data with Knowi datasets. The activity gauge is often used in various visualizations to group the columns corresponding with the number of rings, a value column, and a maximum value column to determine the % completion of the ring and provide a quick and intuitive understanding of how the data processes.
Widget Configuration
| Field | Interpretation |
| Plot Data/Y-Axis | Numeric Y-axis field to use. Leave it empty if for multiple Y-axis fields. |
| Max Value | Goal value |
| Attribute Name | Column to control the name of the activities displayed on the chart |
| Max Activities | Set a maximum number of activities to display. From 1 to 5, Default is 3. |
Display and Formatting
| Field | Interpretation |
| Title Font Color | Set Widget title font color |
| Title Font Size | Size of the fonts. Default is 14px |
| Display Theme | Select a theme for chart types |
| Background Color | Change the background of the widget |
| Modify Colors | Set colors for the chart |
| Legend Alias | Change the legend display text |
| Legend Ordering | Change the legend ordering to either alphabetical or by value. It is arranged in natural order by default. |
| Legend Show/Hide | Doesn't display the legend if the box is not checked |
Widget Menu
| Field | Interpretation |
| Show Title | Show title on widget |
| Analyze | Show analyze menu |
| Alerts | Show alert icon |
| Filters | Show filter icon |
| Drilldowns | Show drilldown values |
| Query | Show query menu |
| Data/Export | Show data export menu |
| Data diagram | Show data diagram |
| Share | Show share menu |
| Refresh | Show refresh menu |
| Maximize | Show maximize menu |
| Remove from Dashboard | Show remove from the dashboard menu |
| InstantSights | Show instantSights |
Advanced Configuration
| Field | Interpretation |
| Animation | Animation of the chart. By default ON |
| Change Dataset (apply immediately) | Change to a different dataset. Applied immediately without requiring saving widget settings |
| On Click Event Handler | Define custom javascript behavior when a point is clicked. More info |
